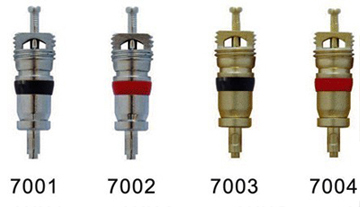

No.7000 Large Bore Short Cores
NO.7000 SERIES - Large bore short valve core with inside spring, applied to tire valves with No.2 core chamber (8V1)
| No. | Premier No. | Surface | Gasket Color | Working Pressure Range | Working Temperature Range |
Suggested Installing Torque |
| 1 | 7001 | Nickel Plated | Black | 0~1.5 (Mpa) | -40～+100 | 0.34-0.56 (N.m) |
| 2 | 7002 | Red | ||||
| 3 | 7003 | Brass Finish | Black | |||
| 4 | 7004 | Red |
