NO.9000 for Special Purpose
NO.9000 for Special Purpose

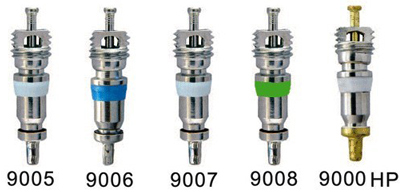

| No. | Premier No. | Gasket Color | Feature | Working Pressure Range | Surface | Working Temperature Range |
Suggested Installing Torque |
| 1 | 9005 | White Transparent | R-12, R-22 Resistant |
0~3.5 (Mpa) | Nickel Plated | -20～+100 | 0.17-0.34 (N.m) |
| 2 | 9006 | Blue | R-134a Resistant |
0~3.5 (Mpa) | |||
| 3 | 9007 | White | Low Opening Pressure (0-3psi) | 0~1.5 (Mpa) | |||
| 4 | 9008 | Green | Lead Free | 0~1.5 (Mpa) | -40～+120 | ||
| 5 | 900HP | white | High Pressure Application | 0~10.0 (Mpa) | -20～+120 |
